High level storage and intensive storage of pallets/carriers.
Narrow aisle width of 1.6m, bidirectional,
The maximum lift height : 11m.
Laser SLAM navigation.
Seven safety protection.
High level storage and intensive storage of pallets/carriers.
Narrow aisle width of 1.6m, bidirectional,
The maximum lift height : 11m.
Laser SLAM navigation.
Seven safety protection.

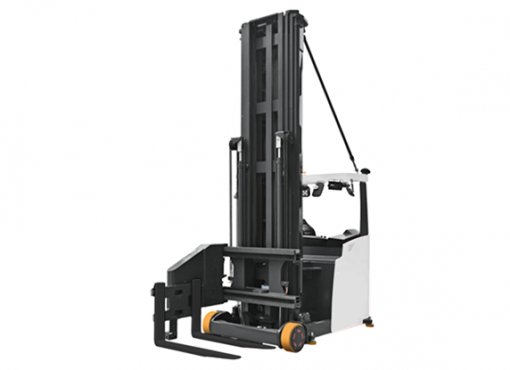

Model | ANR-FV16 | ANR-FV16 |
AGV Size(mm) | 3460*1580*3600 | 3460*1580*4265 |
Lift height(mm) | 7500 | 9000 |
Safety performance | Anti-collisiion lidar x3、Around bumper strip | |
AGV weight(kg) | 6000 | 6500 |
Rated Load(kg) | 1600 | 1600 |
Navigation type | Lidar SLAM | |
Max traveling speed(m/s) | 8 | 8 |
Load center distrance(mm) | 600 | 600 |
Fork dimension(mm) | 1200/125/50 | 1200/125/50 |
Fork outer width(mm) | 265~765 | 265~765 |
Positioning accuracy(mm) | ±10 | ±10 |
Motion mode | Forward/Backward | |
Min.turning radius (mm) | 2080 | 2180 |
Battery type | Lithiuim battery | |
Battery volume | 48V/450Ah | 48V/560Ah |
Min. aisle width (mm) | 1680 | 1800 |
