High efficiency:Up to 30,000 sortingtargets,The AGv works intandem with the 3D sorter.The sortingaccuracy is as high as99.9999%.
Quick delivery:The production installationand commissioning cycle isshort and can be remoteCommissioning, fastestdelivery in 2 weeks.
High flexibility:Highly modular design,available according tocustomer Requirements forcustomized desian layout.and Increase or decreaseAGV according to off-peak season the number.
Save space:The system occupies asmall space and canchoose single, doubleand triple layer AGV channels to improve the sorting efficiency by 2-3times in the same area.

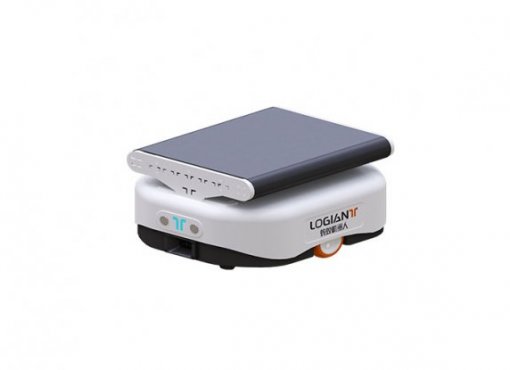

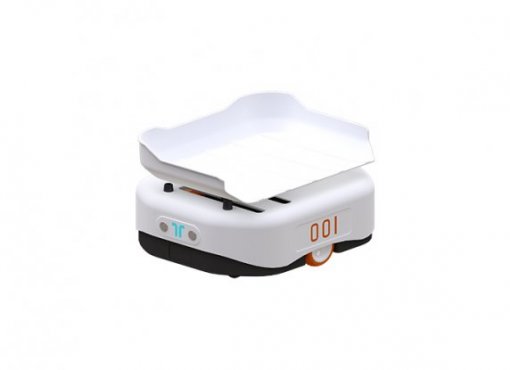

The FlyPick robot adopts a high-precision navigation mode, servo motor drive, low energy consumption, high efficiency, and high flexibility, and can achieve efficient and accurate sorting of small items.
MODEL | ANR-SF5-TM | ANR-SF5-BM |
Overall dimensions (mm) | 470*390*268 | 470*390*268 |
Body weight(kg) | 14 | 17 |
Maximum item size(with items inside)mm | 350*240 | 350*240 |
Rated load(kg) | 5 | 5 |
Tray turnover angle | 45°-75°,adjustable | / |
Rotation diameter (mm) | 490 | 525 |
Transfer mode | Tray type | Tray type |
Drive system | Servo motor | Servo motor |
Navigation method | Composite navigation | Composite navigation |
No-load running speed (m/s) | 2 | 2 |
Full-load running speed (m/s) | 2 | 2 |
Rated no-load acceleration(m/s2) | 1.4 | 1.0 |
Rated full-oad acceleration (m/s2) | 1.4 | 1.0 |
Charging method | Contact self-charging | Contact self-charging |
Operating time | Run for 3 hours on full charge | Run for 3 hours on full charge |
Battery type | Lithium battery | Lithium battery |
Battery voltage (Ah/V) | 9Ah/24V | 9Ah/24V |
Battery life | Charge and discharge 10,000 times | Charge and discharge 10,000 times |
Standby time | 1 month | 1 month |
Charger capacity | 12 cars/chargers | 12 cars/chargers |
Audible/visual alarm | Standard configuration | Standard configuration |
Operating temperature (°c) | -10~55 | -10~55 |
Humidity | <95%(25°c) no condensation | <95%(25°c) no condensation |
Carrier plate form | Tilting plate | Conveyor belt |
Standard carrier plate size(mm) | 330*440 | / |
Conveyor belt size | / | 300*380 |
