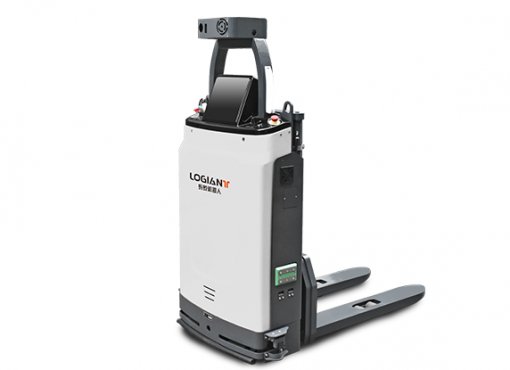

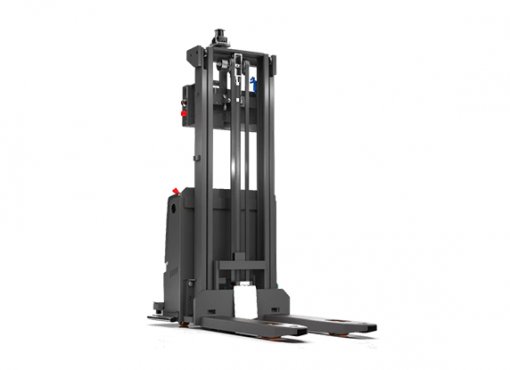

FL series Forklift AMR

Product Model:ANR-FL10、ANR-FR15

Product Features:
Single face pallet/carrier
Handle pallet from ground/conveyor/rack.
Thin AGV body for the narrow aisle.
Lidar SLAM navigation.
Seven safety protections.

Product Introduction

Single face pallet/carrier

Handle pallet from ground/conveyor/rack.

Thin AGV body for the narrow aisle.

Lidar SLAM navigation.

Seven safety protection.

Product Specifications

Model	ANR-FL10	ANR-FL15
AGV Size(mm)	16009901870	17009901980
Lift height(mm)	2000	1980
Safety performance	Anti-collision lidar x3、Around bumper strip
AGV weight(kg)	732	725
Rated Load(kg)	1000	1500
Load center distance(mm)	600	600
Fork dimension(mm)	120016060	115018070
Min. turning radius (mm)	1157	1230
Fork outer width(mm)	560	680
Navigation type	Laser SLAM
Max traveling speed(m/s)	1.2	1.5
Positioning accuracy(mm)	±10
Motion mode	Forward/Backward
Turning mode	Rotate around the center of the load-bearing wheel
Battery type	Lithium battery
Battery volume	48V 44Ah	24V 120Ah
