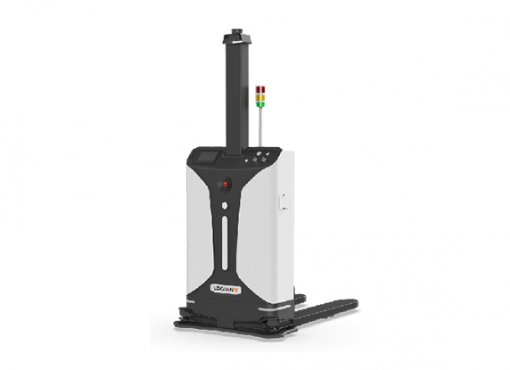

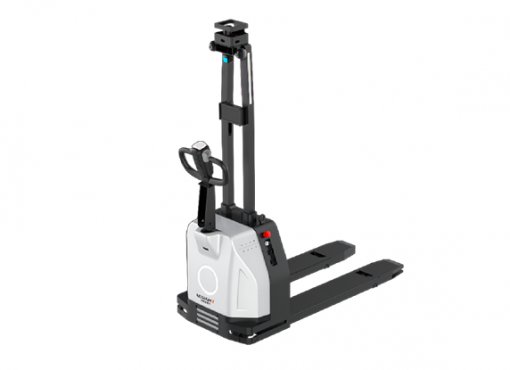

FT series Forklift transport AMR

Product Model:ANR-FT15、ANR-FT20

Product Features:
Ground stacking and handling of single-face pallets/carriers.
Thin AGV body for the narrow aisle.
Lidar SLAM navigation.
Seven safety protections.

Product Introduction

Ground stacking and handling of single face pallets/carriers.

Thin AGV body for the narrow aisle.

Lidar SLAM navigation.

Seven safety protection.

Product Specifications

Model	ANR-FT15	ANR-FT20
AGV Size(mm)	16007222000	15068781430
Lift height(mm)	120	120
Safety performance	front&rear lidar+front&rear 3D camera+anti-collision edge	ront&rear lidar+front&rear 3D camera+anti-collision edge
AGV weight(kg)	557	557
Rated Load(kg)	1500	2000
Load center distance(mm)	600	500
Fork dimension(mm)	1150/180/66	1150/180/61
Min. turning radius (mm)	1400	1060
Fork outer width(mm)	630	680
Navigation type	Lidar SLAM	Lidar SLAM
Max traveling speed(m/s)	1.5	1.2
Positioning accuracy(mm)	±10	±10
Motion mode	Forward/backward	Forward/backward
Turning mode	Rotate around the center of the load-bearing wheel	Rotate around the center of the load-bearing wheel
Battery type	Lithium battery	Lithium battery
Battery volume	48V/27AH	24V/180AH
Pallet detection	Equipped with pallet recognition, maximum support deviation of 150mm
