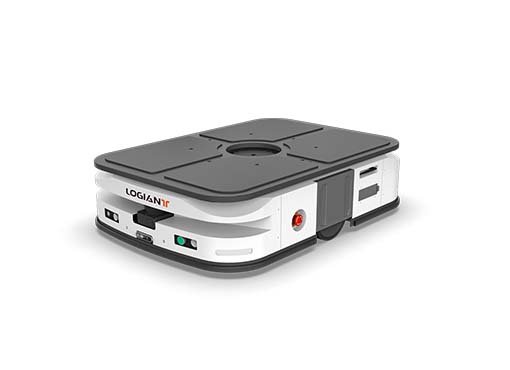

Ultra-low structure design makes the lifting of goods more stable and easier to use
Lifting + independent rotation to achieve multiple applications and composite applications of the same chassis
Modular design, standard interface
Safety circuit design to ensure two-way safety between people and equipment
Intelligent scheduling seamlessly connects with MES, WMS, ERP, etc.
Common applications: Drill into shelves / trucks, etc. and lift the goods before handling
Model | Product Model | L03 | L06 | L10 | ||
Basic Performance | Load kg | 300 | 600 | 1000 | ||
Navigation Mode | Laser SLAM / QR code / composite navigation | |||||
Size mm | 1000*720*290 | 1165*830*285 | ||||
Weight kg | 280 | 300 | 330 | |||
Lifting Plate Dimensions mm | 1100*770 | |||||
Lifting Time s | <3 | |||||
Lifting mm | 60 | |||||
Rotation Diameter mm | 1000 | 1000 | 1275 | |||
LCD | Standard | |||||
Motion Performance | Maximum Climbing ° | 3 | ||||
Maximum Acceleration m/s2 | 0.4 | |||||
Rated Speed(no load) m/s | 1.5 | |||||
Obstacle Crossing Ability(Elevator) | 30mm gap,10mm steps | |||||
Positioning and navigation | Position Accuracy mm | ±10 | ||||
Angle Accuracy ° | ±1 | |||||
Protection | Laser Obstacle Avoidance | Safety Laser×1 | ||||
Bumper Strip | Front ,rear and C-shape anti-collision strips | |||||
Audible Alarm | Standard | |||||
Emergency stop switch | Standard(Quantity 2) | |||||
Front 3D Camera | Optional | |||||
Rear TOF Laser | Optional | |||||
Power and Performance | Battery Type | Lithium Iron Phosphate | ||||
Battery Capacity/Voltage | 30Ah/48V | 36 Ah/48V | 36Ah/51.2V | |||
Charging Time H | 1.2 | |||||
Endurance H | 8 | |||||
Charging Mode | Manual/Automatic | |||||
Charge and Discharge Times | 2000 times (15% attenuation) | |||||
Vehicle | Latent Rack Size mm | 1220*1020(Square Tube 40) | ||||
Tray (Direct Carrying) mm | ≤1200*1000 Standard Chuan Zi Tray | |||||
Tray(Through the top bracket) And Other Vehicles | Detailed Communication | |||||
Other | Control Mode | Manual / Auto |
