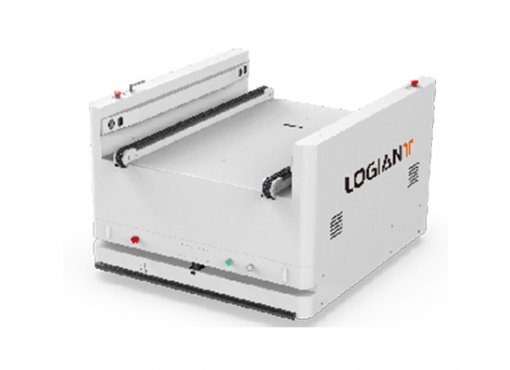

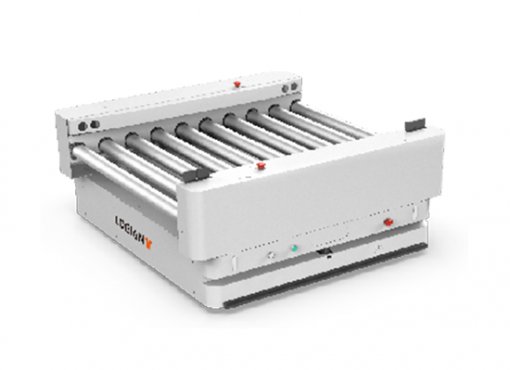

P06-P10 Pallet handling AMR

Product Model:P06 P10

Seamless docking conveyor line

Heavy load material transportation

Laser SLAM/QR code navigation composite navigation

360 degree safety protection

Item	Model	ANR-P06	ANR-P10
Basic parameter	Payload (kg)	600	1000
	Navigation type	Laser SLAM/QR code/ Complex navigation
	Body size (mm)	14501300700	14501300700
	Body weight (kg)	400	450
	Docking height (mm)	700
	Pallet size (mm)	1200*1100
	Rotation diameter (mm)	/
	LCD display	Standard configuration
Motion parameter	Max. climbing ability (°)	3
	Max. acceleration (m/s2)	0.4
	Traveling speed (m/s)	1.5
Navigation	Positioning accuracy (mm)	±10
	Angular accuracy (°)	±1
Safety protection	Laser obstacle avoidance	safety laser ×1
	Bumper strip	Front/rear C-shaped bumper strip
	Audible alarm	Standard configuration
	Emergency stop button	Standard (X4)
Battery	Battery type	Lithium battery
	Battery volume (Ah/V)	36Ah/48V	40Ah/48V
	Charging time (H)	1.2
	Endurance time (H)	8
	Charging tyype	Manual/Automatic
	Charg/discharge cycle	2000 times（15% attenuation）
Other	Control type	Manual/Automatic
