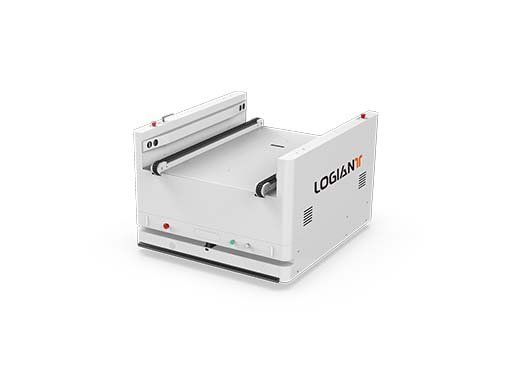

P06A-P10A Pallet handling AGV

Product Model:P06A P10A

Product Features:
Use rollers, chains, etc. to transfer, reduce the handling intensity
High degree of customization, which can highly match the requirements of automatic connection in various scenarios

Modular design, standard interface

Safety circuit design to ensure two-way safety between people and equipment

Intelligent scheduling seamlessly connects with MES, WMS, ERP, etc.

Common applications: For 1200 * 1000 pallet handling

Model	Product Model	P06A	P10A
Basic Performance	Load kg	600	1000
	Navigation Mode	Laser SLAM / QR code / composite navigation
	Size mm	14501300700	14501300700
	Weight kg	400	450
	Docking Height mm	500
	Tray Size mm	1200*1000
	LCD	Standard
Motion Performance	Maximum Climbing °	3
	Maximum Acceleration m/s2	0.4
	Rated Speed(no load) m/s	1.5
Positioning and navigation	Position Accuracy mm	±10
	Angle Accuracy °	±1
Protection	Laser Obstacle Avoidance	Safety Laser×1
	Bumper Strip	Front and rear anti-collision strips
	Audible Alarm	Standard
	Emergency stop switch	Standard（Quantity 4）
Power and Performance	Battery Type	Lithium Iron Phosphate
	Battery Capacity/Voltage	36Ah/48V	40Ah/48V
	Charging Time H	1.2
	Endurance H	8
	Charging Mode	Manual/Automatic
	Charge and Discharge Times	2000 times (15% attenuation)
other	Control Mode	Manual / Auto
