[technology sharing 1] BS architecture and CS architecture of AGV dispatching system

Date:2021-11-10 Browse:659次

导语

      Ant robots has independently developed a new version of intelligent scheduling system based on BS architecture, which has been successfully applied to many customer sites to help the factory achieve more efficient productivity and has been unanimously recognized by customers.

      The transition from CS architecture to BS architecture is one of the major breakthroughs in the new version of ant robots scheduling system. Combined with the rich experience of ant robots in the front-line field of customers for many years and the keen capture of intelligent scheduling innovation technology, at the innovation level of the new version of scheduling system, BS architecture is selected as the basic architecture of the system.



Schema Definition


CS architecture

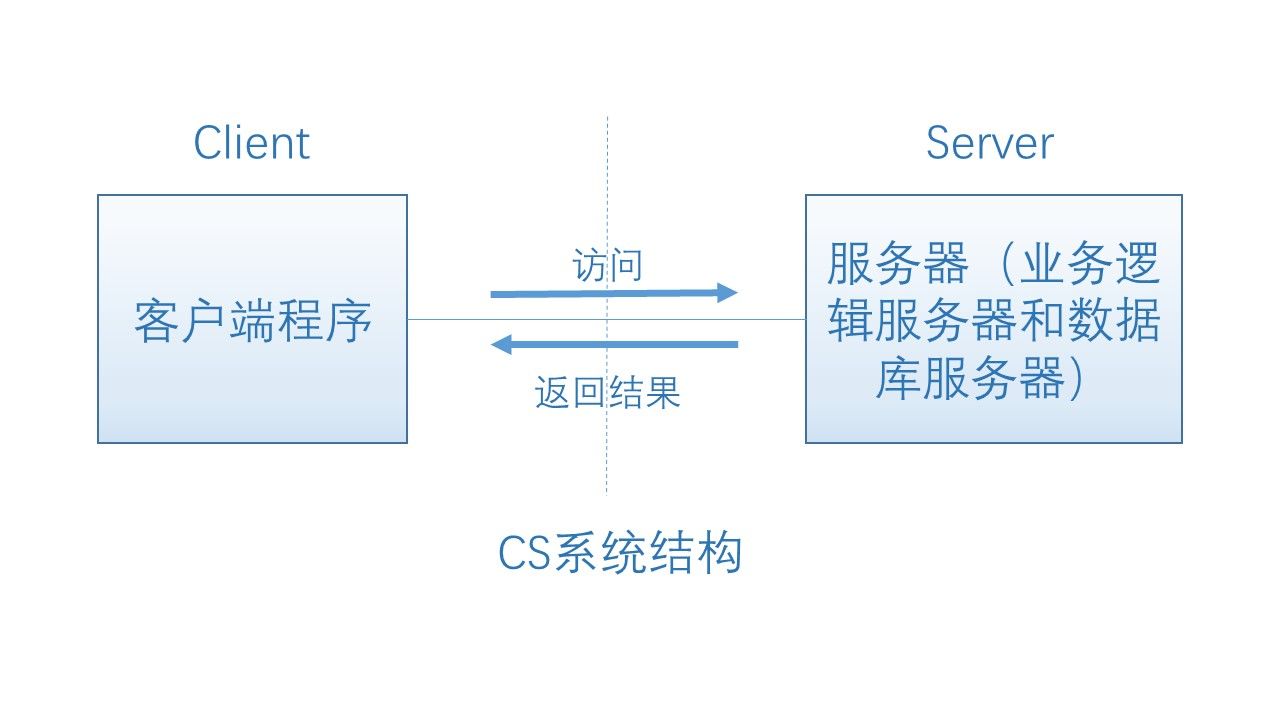

C / S architecture, i.e. client / server structure, makes full use of the advantages of hardware environment at both ends and reduces the communication overhead of the system by reasonably allocating tasks to client and server. Most early software systems take this as the preferred design standard.


BS architecture

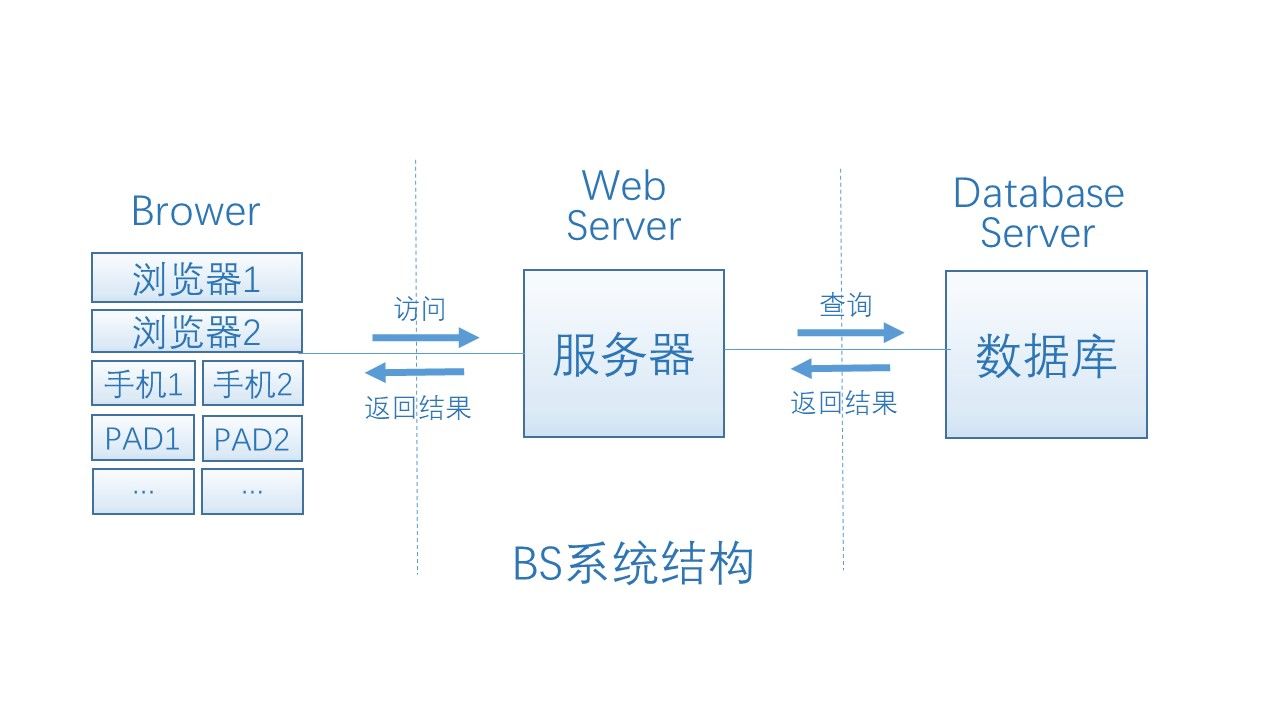

B / S architecture, namely browser / server structure, is an improvement of C / S structure with the rise of Internet technology. In this structure, the user interface is completely realized through the browser.


BS architecture advantages


1. Multi browser access
The system based on BS architecture supports multi browser access. For example, the new ant robots intelligent scheduling system can directly enter the working interface under a variety of browsers such as edge browser and Google browser. It is different from the traditional client download and login, and can be quickly deployed, installed and configured.
When accessing, enter the access address of the dispatching system in the browser. After successful access, the interface is as follows. Enter the user name and password to log in, as shown in the figure:

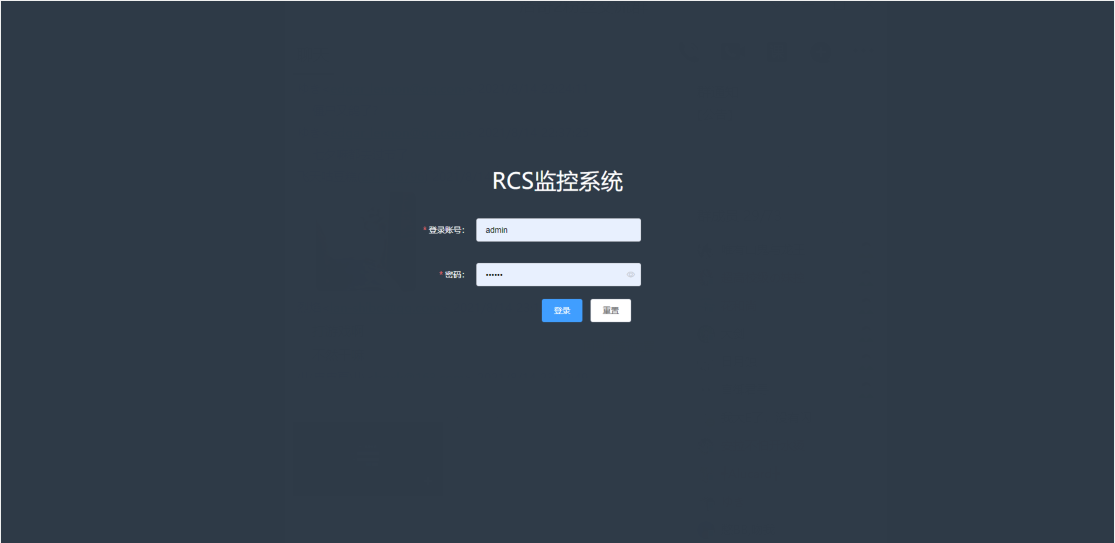

Login interface of new dispatching system


2. The interface is simple and clear
Because the BS architecture adopts the front-end and back-end separation mode, the front-end (client) UI program runs independently, and the task scheduling system acts as the back-end service to provide the front-end with standard interfaces and data. Very few transaction logic is implemented in the front-end, and the main transaction logic is borne by the back-end, so the client interface is concise and clear with complete functions.

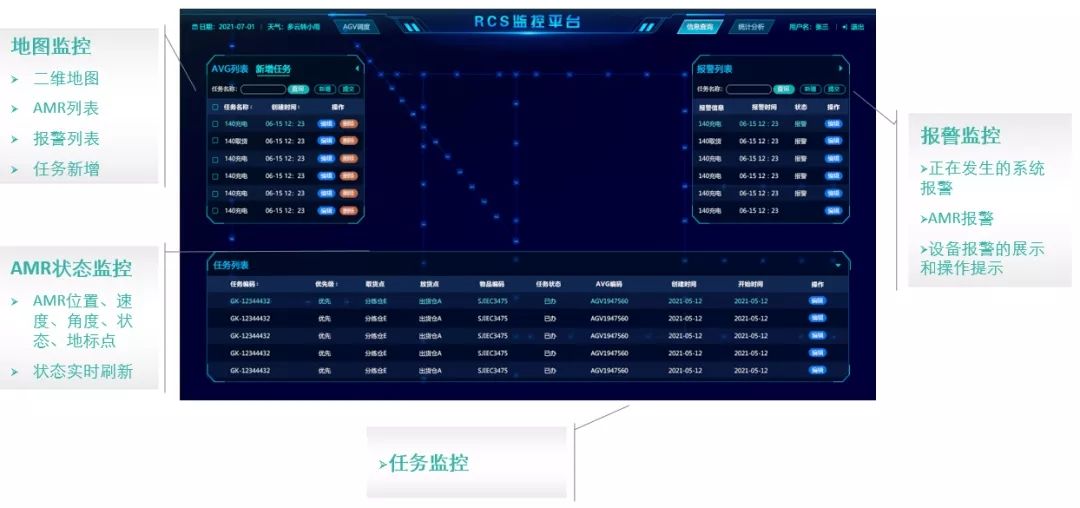

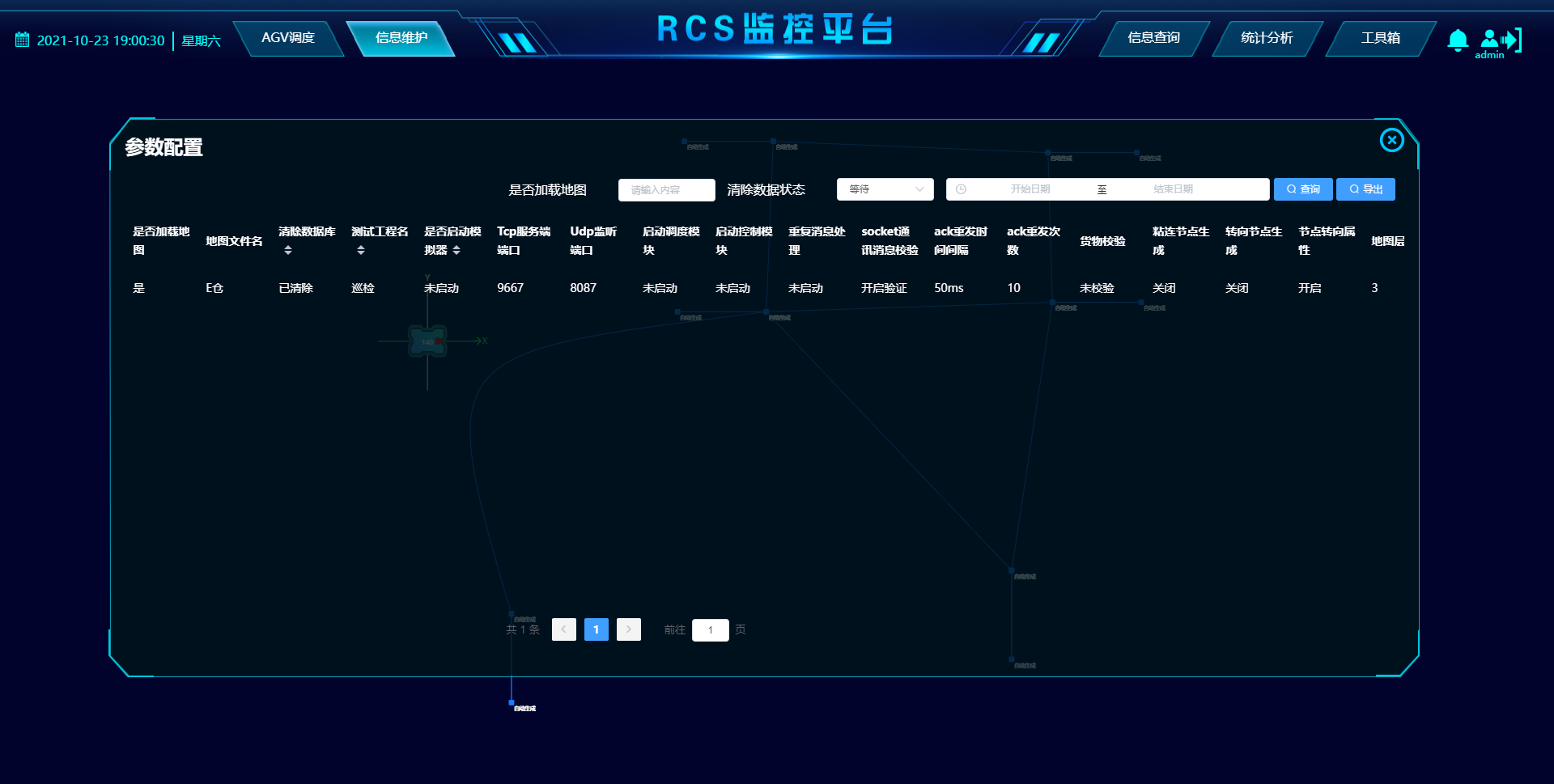

The client of the new ant robots scheduling system can view the robot's position information, status information, task execution status, alarm information, log information, etc. in real time.

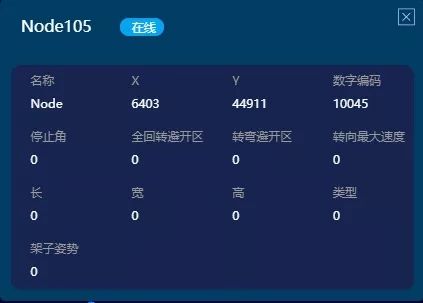

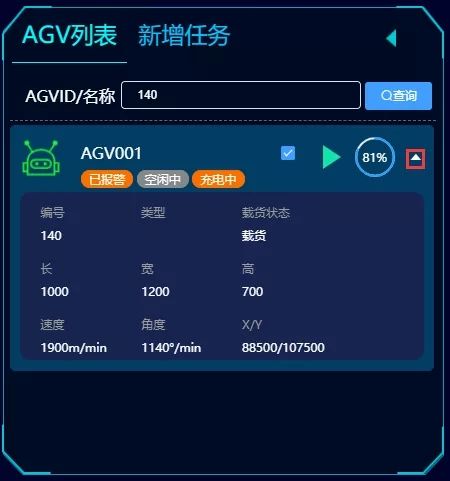

Robot information

Map information

Complete functions and simple operation

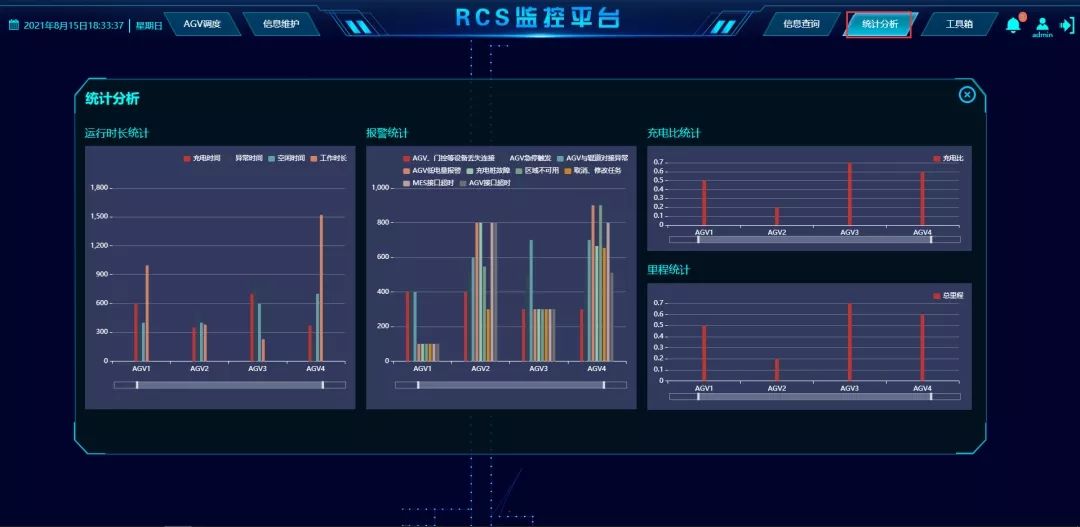

data statistics

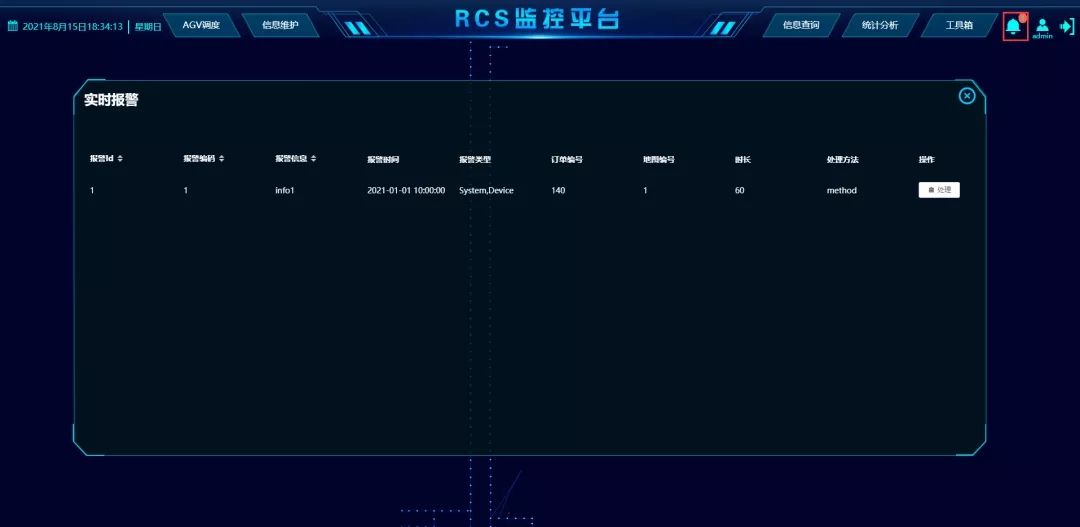

Real time alarm


The scheduling system based on BS architecture not only has a simple interface, but also has a simple update. If the content needs to be updated, users only need to refresh the browser to update multiple devices synchronously.
3. Low maintenance cost
System maintenance costs a lot in the software cycle. When it needs to be upgraded, the BS architecture only needs to upgrade the server-side programs once to upgrade all systems, including the access display of mobile phones, pads and computers, which can display the latest version in time. Under the CS architecture, the programs of each access end need to be upgraded one by one, resulting in high maintenance cost.
In addition to low maintenance cost, the scheduling system based on BS architecture also has low development cost and strong sharing, which can greatly reduce the burden of customers and improve the cost performance.

Although the scheduling system based on BS architecture has been more recognized by customers, many customers still firmly choose CS architecture in the field of intelligent logistics. The main reason is that CS architecture is technically mature and has strong control over information security, but it also determines its complex requirements for multi-level verification of permissions. Secondly, it can handle complex business processes, This also leads to its high development and maintenance costs, which can only be completed by professional technicians. CS architecture can not give full play to its advantages at the level of intelligent dispatching system. On the contrary, the experience brought by cumbersome verification and system maintenance is far less than that of BS architecture.

Different enterprises will face different needs when using the scheduling system. We will also provide customized logistics system solutions according to the needs of enterprises, so as to create higher value for customers with the best planning scheme and the highest cost performance.
